GV-S(0.1~2.2KW)

S-PM平行轴在无传感器的情况下实现逼近伺服电机的速度控制。实现高效、紧凑和独特的高精度齿轮产生的低噪声.。 以预励磁停止时保持转矩功能附加高频、电子制动功能. 通过独自的RGC加工,在以降低噪音为目的的平行轴上准备脚安装和凸缘安装。

全国服务热线:0512-6605 1469

在线咨询

S-PM平行轴在无传感器的情况下实现逼近伺服电机的速度控制。实现高效、紧凑和独特的高精度齿轮产生的低噪声.。


以预励磁停止时保持转矩功能附加高频、电子制动功能.

通过独自的RGC加工,在以降低噪音为目的的平行轴上准备脚安装和凸缘安装。



サーボモータに迫る速度制御をセンサレスで実現

S-PMモータ(永久磁石モータ)と三菱独自のセンサレスベクトル制御の組合せにより、高精度な速度制御を実現しました。

速度変動率はサーボモータに迫る±0.05%、誘導モータでは対応できなかった半導体や液晶製造ラインなどの高精度搬送用途への適用が可能です。

回転速度―トルク特性
センサレス制御

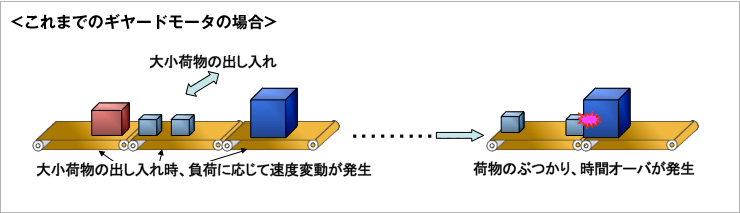

これまでのギヤードモータの場合

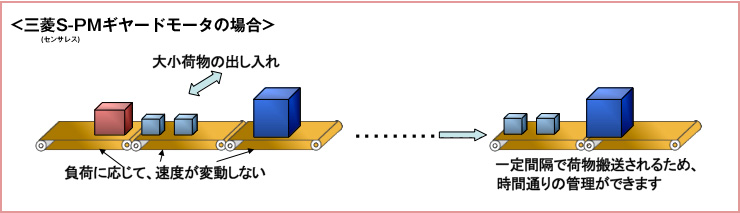

三菱S-PMギヤードモータの場合

モータ基準IE3レベルをクリアした高効率

回転子に強力な永久磁石(高性能フェライト磁石)を組込んだ高性能省エネルギーモータで、誘導モータ高効率基準IE3レベルをクリア、機械装置の省エネルギーを実現しました。


モータ効率比較
IEC60034-30 効率クラス
出力
(kW)
モータ効率(%)年間削減電力量
(kWh)
年間削減電力量
(円)
年間削減CO2
(kg)
標準(誘導モータ)S-PM
0.168.575.31,15516,170641
0.271.481.43,01442,1961,673
0.475.087.46,62892,7923,679
0.7579.989.58,820123,4804,895
1.581.488.913,619190,6667,559
2.283.690.617,811249,3549,885

試算条件:10台運転,定格負荷,運転時間8760Hr/年(=24Hr/日×365日/年) 電力料金14円/kWh,CO2排出量0.555kg/kWh
標準(誘導モータ)1800r/min(220V/60Hz),S-PMは3000r/minの効率値
本データは参考値です。モータの消費電力でありドライブユニットを含んでおりません。
