IWAKI Magnetic Pump MD-100FGY, 3-Phase 200V, MD-F Series

Company Profile: Suzhou Ueno Company
Suzhou Ueno Company is a specialized supplier of Japanese machinery. Contact: Zhang Tao, Mobile: 188-9698-4864, WeChat: 18896984864, Email: 617086314@QQ.com.

Manufacturer: IWAKI CO., LTD.

• Established: April 10, 1956 (Showa 31)

• Headquarters: Nissei Kanda Sudacho Building, 2-6-6 Kanda Sudacho, Chiyoda-ku, Tokyo

• Business: Development, manufacturing, and sales of various fluid control equipment, including chemical pumps.

• Employees: 1,146 (consolidated), 790 (non-consolidated) as of March 31, 2026.

• Products: Magnetic pumps, metering pumps, electromagnetic metering pumps, pneumatic pumps, rotary positive displacement pumps, etc.

Brand Overview: IWAKI
IWAKI is a world-leading fluid control equipment manufacturer and a renowned brand in the chemical pump industry. The company is often recognized for having the "most extensive range of professional chemical pumps." Over its 60-year history, IWAKI has developed a diverse product line with a flexible, small-batch production system to meet varied customer needs. Many clients consider IWAKI their first point of inquiry for chemical pumps. The company's development parallels the history of chemical pumps, and it remains committed to delivering high-quality products under the principles of "professionalism and quality."

Product Overview: Plastic Acid/Alkali-Resistant Magnetic Pump (Magnetically Driven Pump)

This equipment is designed for fluid transfer. It primarily consists of a pump head, magnetic drive unit (magnet assembly), motor, and base plate. The magnetic drive unit comprises an outer magnet rotor, inner magnet rotor, and a non-magnetic isolation shell. When the motor rotates the outer magnet, magnetic flux penetrates the air gap and non-magnetic material, synchronously rotating the inner magnet connected to the impeller. This enables contactless power transmission, converting a dynamic seal prone to leakage into a static seal with zero leakage. The pump shaft and inner magnet are completely enclosed within the pump body and isolation shell, eliminating "run, drip, leak, and spill" issues.

Applications: Suitable for transferring and circulating all types of clean chemical solutions containing acids or alkalis. Widely used in electroplating, electronics, chemical processing, leather manufacturing, dyeing wastewater treatment, and exhaust gas treatment.

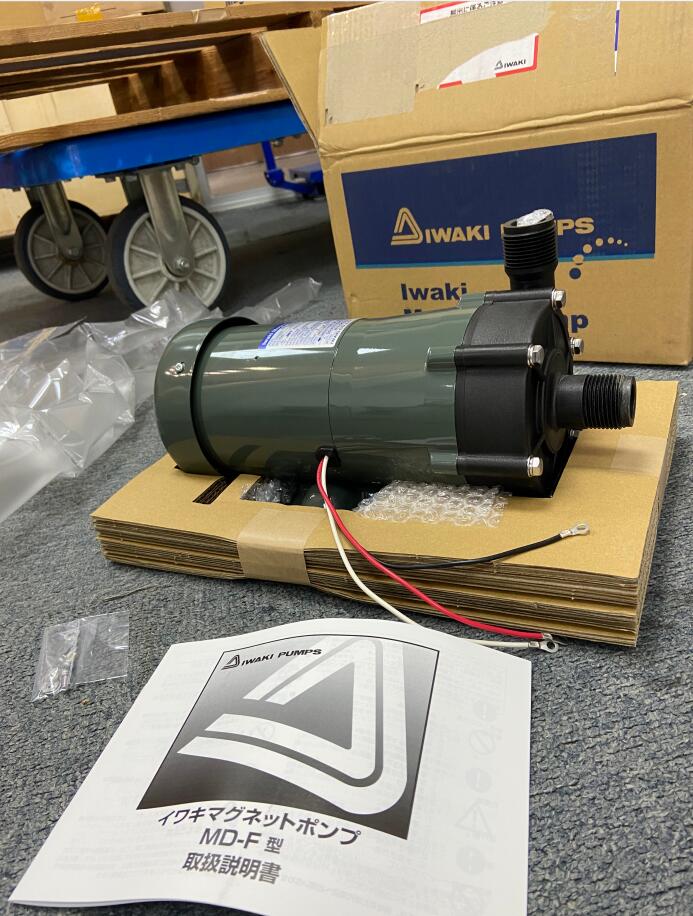

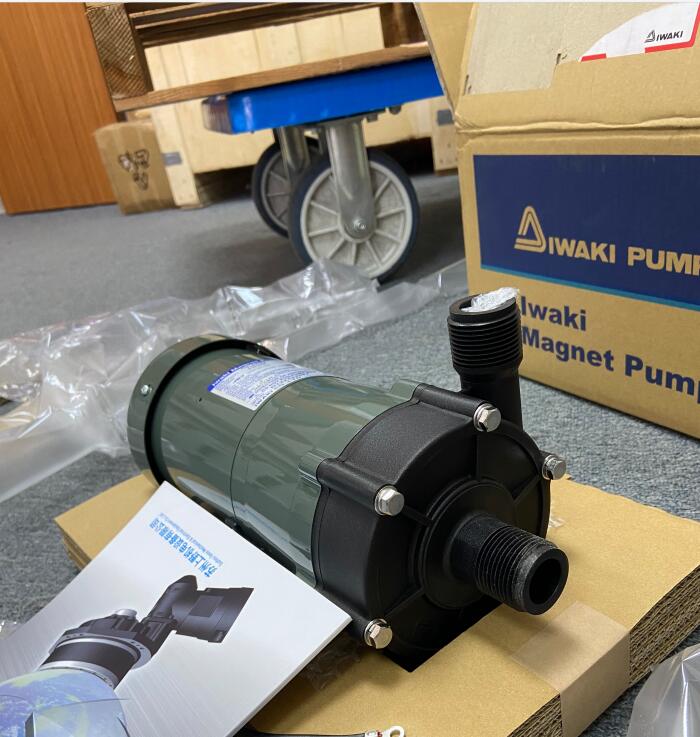

Model Details: MD-100FGY (3-Phase 200V)

This is a compact magnetic-driven, seal-less pump capable of handling high-specific-gravity liquids such as strong acids. It features three standardized impeller types based on specific gravity, allowing for flexible selection according to the liquid being handled. The pump section is leak-free, eliminating the need for mechanical seal replacement. Its compact design makes it ideal for integration into equipment.

Specifications:

• Output Power: 260/265 W

• Power Supply: 3-phase 200V AC (Customizable to 1-phase 100V, 1-phase 200V, 3-phase 200V, etc.)

• Max. Total Head: 8.5/11.5 m

• Max. Flow Rate: 115/135 L/min

• Viscosity: Up to 30 mPa·s

• Discharge Port Diameter: G1 (male thread)

• Suction Port Diameter: G1 (male thread)

• Liquid Temperature Range: 0 to 80°C (depending on liquid quality)

• Sealing Method: Seal-less

• Ease of Maintenance: Pump section consists of a few unitized components, facilitating easy disassembly and inspection.

• Corrosion Resistance: Main material is GFRPP (Glass Fiber Reinforced Polypropylene), providing excellent chemical resistance for transferring a wide range of chemical solutions.

Series Options:

• MD-F Series: Made of CFRETFE – ideal for strong acids, strong alkalis, and organic solvents.

• MD-V Series: Made of CFRPVDF – also suitable for aggressive chemicals.

Operating Principle:
This is a magnetically driven centrifugal pump. The impeller (with built-in ferrite magnets) is rotated by magnets mounted on the motor shaft. The pump chamber is completely sealed from the outside by the casing. Since the impeller is driven magnetically, there is no pump shaft or mechanical seal. The coupling torque between the drive and driven magnets is sufficient to withstand motor torque. Its compact, lightweight design makes it ideal for integration into equipment and systems.

Accessories:

• Union Joint (Screw Connection Type): Available in 3 sizes and 2 materials.

• Self-Priming Tank: Made of polypropylene. Once filled with water, the pump can operate without repriming and is not constrained by installation position.

• Flow Control Device (Inverter): Specifically designed for compact magnetic pumps. Features an easy-to-operate dial, supports multiple input signals, and offers low-noise and safe design.

Application Fields:

• Drinking water (secondary disinfection)

• Medical equipment

• Surface treatment (electroplating solution circulation)

Thread Standard Explanation (G1"):
G1" is a pipe thread designation. NPT, PT, and G are all pipe thread standards.

• NPT stands for National (American) Pipe Thread, a 60-degree tapered thread standard used in North America (per GB/T12716-1991).

• G designates a 55-degree non-sealing pipe thread, part of the Whitworth thread family. The "G" marking indicates a parallel (cylindrical) thread (per GB/T7307-2001).

Company Introduction: Suzhou Ueno Electromechanical Equipment Co., Ltd.
Suzhou Ueno is a professional supplier of Japanese mechanical equipment and components. Dedicated to industrial control product sales and technical services in China, the company leverages high-end, precision advanced technologies from global leaders. Through quality brands, established channels, and a diversified business model, Suzhou Ueno contributes to China's industrial automation development. As a long-standing supplier of mechanical components and systems, the company consistently aligns cutting-edge technology with user needs. Committed to integrity and professional expertise, Suzhou Ueno aims to foster mutual development and shared success.

Inventory & Models Offered by Suzhou Ueno (Zhang Tao):

IWAKI Magnetic Pumps:

• MD-100FGY (3-phase 200V) – MD-F Series – Qty: 4,000 units

• MD-100FGX (3-phase 200V) – MD-F Series

• MD-100FGZ (3-phase 200V) – MD-F Series (Power supply customizable: 1-phase 100V, 1-phase 200V, 3-phase 200V)

• MD-70RZM (1-phase 200V)

Accessories (Union Connectors):

• union20A (includes MD0642 + MD0623 + MD0376) – Qty: 400 units

• UT-20A-FKM (Material: PVC)

• UT-H20A-FKM (Material: EPDM, temperature rating 0–55°C)

• UT-13A-FKM

• UT-H13A-FKM

• UT-16A-FKM

• UT-H16A-FKM

• UT-20A-FKM

• UT-H20A-FKM

Complete Model List (Including those mentioned above):

• MD-55FGZ

• MD-100FGZ

• MD-15FY-N

• MD-30FX-N

• MD-30FY-N

• MD-55FY

• MD-100FY

• MD-30FGX-N

• MD-30FGY-N

• MD-55FGY

• MD-100FGY

• MD-15FX-N

• MD-55FX

• MD-100FX

• MD-100FGX

• MD-30FGZ-N

• MD-55FZ

• MD-100FZ

• MD-55FGX

• MD-15FZ-N

• MD-30FZ-N
